Home > Products > Diamond Cutter > High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron
    High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron
    • High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast IronHigh Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron
    • High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast IronHigh Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron
    • High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast IronHigh Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron
    • High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast IronHigh Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron

    High Quality Solid CBN Insert, PCD Inserts, PCBN Blank for Cast Iron

    SOLID CBN INSERTSGRADEWORK MATERIALSBN637Fit for roughing and inermittent cutting of gray cast iron,ductile cast iron,chilled steel,high hardness alloy cast iron,high nickel chromium,high chromium,hadfield steel, and other dufficult-to-machine material.SBN2080Fit for semi-finishing and finishing of ......

    Send Inquiry

    Product Description

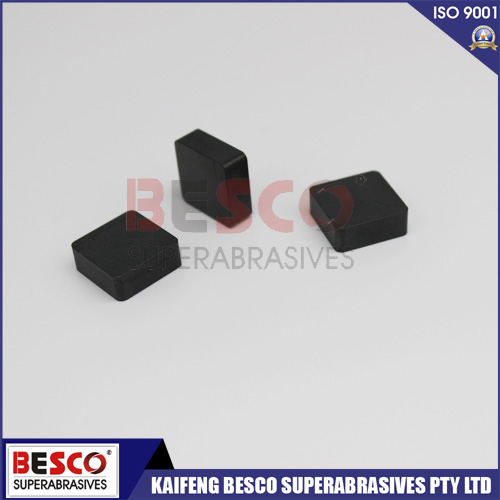

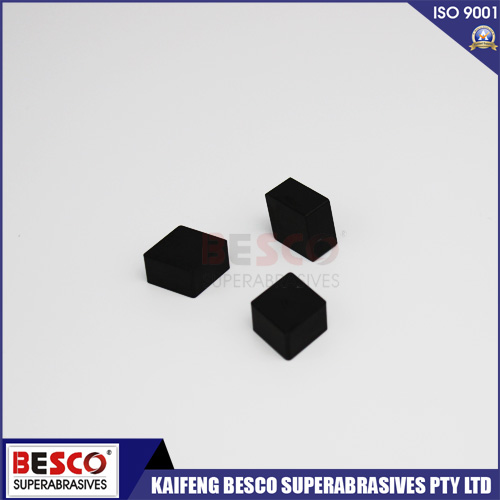

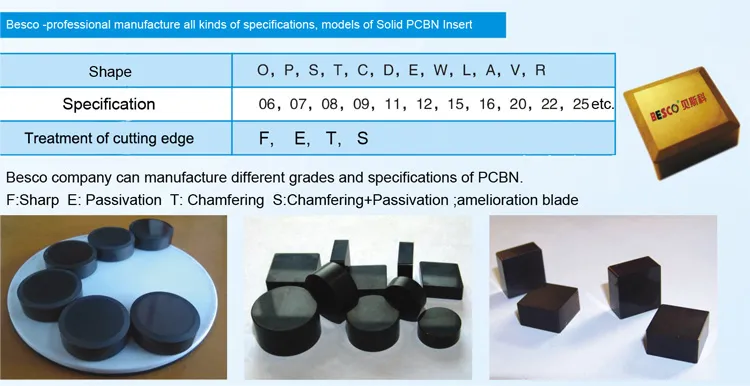

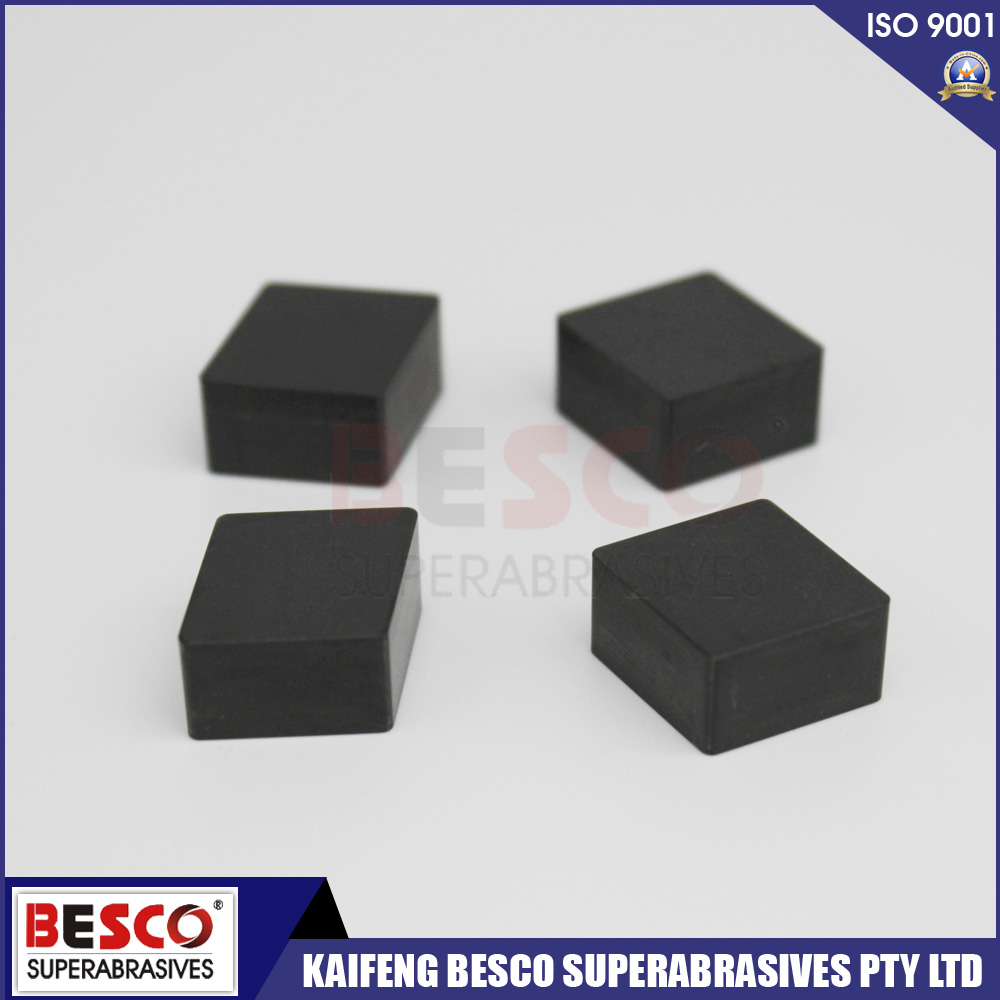

    SOLID CBN INSERTS
    GRADEWORK MATERIAL
    SBN637Fit for roughing and inermittent cutting of gray cast iron,ductile cast iron,chilled steel,high hardness alloy cast iron,high nickel chromium,high chromium,hadfield steel, and other dufficult-to-machine material.
    SBN2080Fit for semi-finishing and finishing of gray cast iron,ductile cast iron, high temperature alloy,chilled cast iron and other difficult-to-machine material.
    SBN800Fit forfinishing of gray cast iron,ductile cast iron,high temperature alloy,chilled cast iron,etc.

    PRODUCT INFORMATION
    TYPEDIMENSIONS
    ISOLΦi.csr
    RNMN0604006.356.354.760
    RNMN0903009.5259.5253.180
    RNMN12040012.712.74.760
    RNMN12070012.712.77.940
    RNMN15070015.87515.8757.940
    RNMN19070019.0519.057.940
    RNMN2010002020100
    RNMN25100025.425.4100
    CNMN12040812.712.74.760.8
    CNMN12071212.712.77.941.2
    SNMN12071212.712.77.941.2
    WNMN0804088.7212.74.760.8

    PCBN/PCD CUTTING TOOLS
    TYPEDIMENSIONS
    ISOLΦi.csr
    VNGA160402-2S16.69.5254.760.2
    VNGA160408-2S16.69.5254.760.8
    DNGA150402-2S15.512.74.760.2
    DNGA150408-2S15.512.74.760.8
    NOTE:CUTTING EDGE CONDITION CAN BE CUSTOMIZED.
