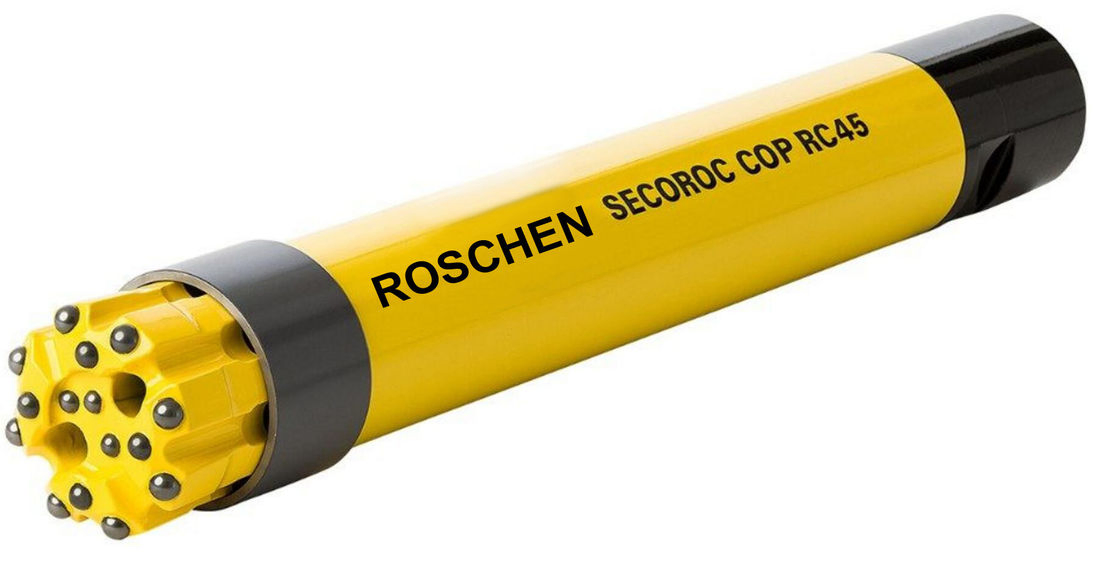

Reverse Circulation Hammers Re545 RC Hammers for 4 Inch RC Drill Pipe Western Africa Gold Core Sampling
Reverse Circulation Hammers & BitsRoschen offers a complete line of Reverse Circulation hammers and spare parts, which can replace Roschen series Reverse Circulation Hammers & Bits. Hammers are available in a wide range of sizes and styles, to provide maximum performance and longevity on all......
Send Inquiry
Product Description
Reverse Circulation Hammers & Bits
Roschen offers a complete line of Reverse Circulation hammers and spare parts, which can replace Roschen series Reverse Circulation Hammers & Bits. Hammers are available in a wide range of sizes and styles, to provide maximum performance and longevity on all RC drilling jobs.

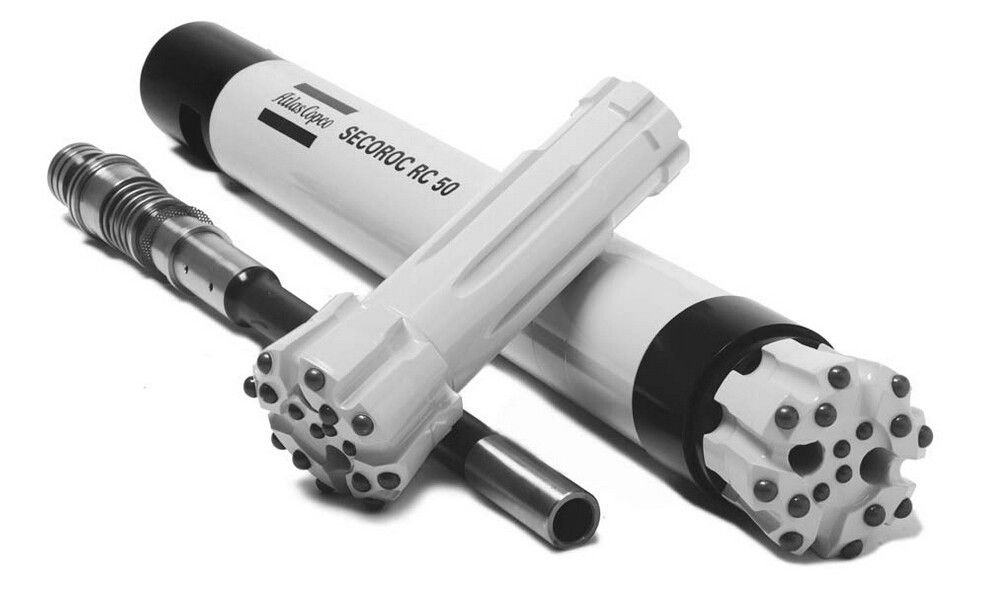

Reverse Circulation hammers are designed with an inner sample tube that extends through the center and into the top of the hammer bit. The RC hammer exhausts the air between the bit splines and over the face of the bit. This forces the sample into the recovery holes in the face of the bit, through the center of the hammer and upward through the drill rod inner tubes to the surface for collection. The use of a shroud or collar is required when a RC hammer is used, to help direct the return air and cuttings up through the face of the bit.
Conventional DTH hammers can also be used in RC drilling operations, but increase the potential for sample loss and contamination. A conventional DTH hammer is used in conjunction with a cross-over sub located between the hammer and drill rod. The sample travels from the face of the bit up the outside of the hammer and into the cross-over sub.
The sub directs the sample up the center of the dual wall rods and to the surface.
REVERSE CIRCULATION DRILLING HAMMERS AND BITS
We offer a full range of reverse circulation down the hole hammers and bits, to suit all depths and ground conditions.
Due to its high-quality sample results, and speed of operation for shallower holes, reverse circulation drilling is becoming increasingly popular around the globe. In fact, it's the most widely accepted chip sampling method. This is largely due to our innovative designs, and we're continuing to develop the capabilities of this valuable sampling method. Partner with Roschen for your reverse circulation down hole hammer drilling.
Advantages:
1. High penetration rates in all rock conditions
2. Quality samples from areas of lost circulation
3. Large, uncontaminated sample return
4. Increased longevity means lower cost per meter
5. The option of diamond-enhanced carbide bits for deep and abrasive drilling conditions, with no bits sharpening required.
RE545 hammer technical data:
ROSCHEN RC hammer technical data:
RC bits sizes available:

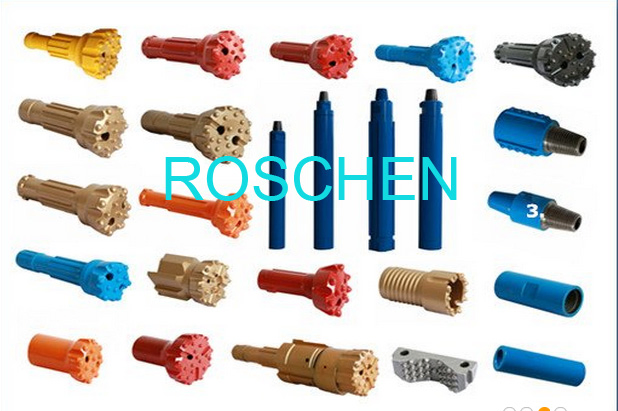

We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
For more information, please contact:
ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED
Website: http://roschen.en.made-in-china.com
http://roschen.en.made-in-china.com
Roschen offers a complete line of Reverse Circulation hammers and spare parts, which can replace Roschen series Reverse Circulation Hammers & Bits. Hammers are available in a wide range of sizes and styles, to provide maximum performance and longevity on all RC drilling jobs.
Reverse Circulation hammers are designed with an inner sample tube that extends through the center and into the top of the hammer bit. The RC hammer exhausts the air between the bit splines and over the face of the bit. This forces the sample into the recovery holes in the face of the bit, through the center of the hammer and upward through the drill rod inner tubes to the surface for collection. The use of a shroud or collar is required when a RC hammer is used, to help direct the return air and cuttings up through the face of the bit.
Conventional DTH hammers can also be used in RC drilling operations, but increase the potential for sample loss and contamination. A conventional DTH hammer is used in conjunction with a cross-over sub located between the hammer and drill rod. The sample travels from the face of the bit up the outside of the hammer and into the cross-over sub.
The sub directs the sample up the center of the dual wall rods and to the surface.
REVERSE CIRCULATION DRILLING HAMMERS AND BITS
We offer a full range of reverse circulation down the hole hammers and bits, to suit all depths and ground conditions.
Due to its high-quality sample results, and speed of operation for shallower holes, reverse circulation drilling is becoming increasingly popular around the globe. In fact, it's the most widely accepted chip sampling method. This is largely due to our innovative designs, and we're continuing to develop the capabilities of this valuable sampling method. Partner with Roschen for your reverse circulation down hole hammer drilling.
Advantages:
1. High penetration rates in all rock conditions
2. Quality samples from areas of lost circulation
3. Large, uncontaminated sample return
4. Increased longevity means lower cost per meter
5. The option of diamond-enhanced carbide bits for deep and abrasive drilling conditions, with no bits sharpening required.
| Reverse Cirulation (RC) Hammer range | |||
| ROSCHEN Series | Hammer Size | Hammer model | Hole range |
| ROS RC 30 | 3" | RE531 | 86 mm - 102 mm (3 ⅜ in. - 4 in.) |
| ROS RC 50 | 5" | RE542 | 118 mm - 133 mm (4 ⅝ in. - 5 ¼ in.) |
| ROS RC 50 | 5" | RE543 | 124 mm - 133 mm (4 ⅞ in. - 5 ¼ in.) |
| ROS RC 50 | 5" | RE545 | 127 mm - 140 mm (5 in. - 5 ½ in.) |
| ROS RC 50 | 5" | RE120 | 127 mm - 140 mm (5 in. - 5 ¾ in.) |
| ROS RC 50 | 5" | RE040 | 127 mm - 140 mm (5 in. - 5 ½ in.) |
| ROS RC 55 | 5.5" | RE052 | 133 mm - 143 mm (5 ⅜ in. - 5 ⅝ in.) |
| ROS RC 55 | 5.5" | RE054 | 137 mm - 146 mm (5 ⅜ in. - 5 ¾ in.) |
RE545 hammer technical data:
| Length (less bit) | 1261mm | |
| Weight (less bit) | 65.0kg | |
| External diamater | φ117.5mm | |
| Bit shank | RE545 | |
| Hole range | φ122-φ135 | |
| Connection thread | 4"-4.5" Remet 4"-4.5" Metzke | |
| Working pressure | 1.5Mpa-3.5Mpa | |
| Air consumption | 1.7 Mpa | 16 m³/min |
| 2.4 Mpa | 22 m³/min | |
| 3.0 Mpa | 28 m³/min | |
ROSCHEN RC hammer technical data:
| ROSCHEN RC Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3" Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| Notes: | |||||||||
| Metzke, Remet thread is available! | |||||||||
| Any special type shank of RC Hammer will be available by requests. | |||||||||
RC bits sizes available:
| No | Hammer Size | RC Hammer Series Model Diameter Specifications |
| 1 | 3" RC bits: | diameter 84mm-100mm shank RE531 |
| 2 | 4" RC Bits: | Diameter (104mm-127mm); Shank type: RE004/RE004R;RE542 |
| 3 | 5" RC Bits: | Diameter(113mm-146mm); Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456 |
| 4 | 6" RC Bits: | Diameter(152-190mm); Shank type: RC62/RC62R; |
| 5 | 8" RC Bits: | Diameter(190-250mm); Shank type: RC82/RC82R; |
| 6 | 10" RC Bits: | Diameter(250-370mm); Shank type: RC100/RC100R. |
| * | Other size woulbe be against customer's requirements | |
