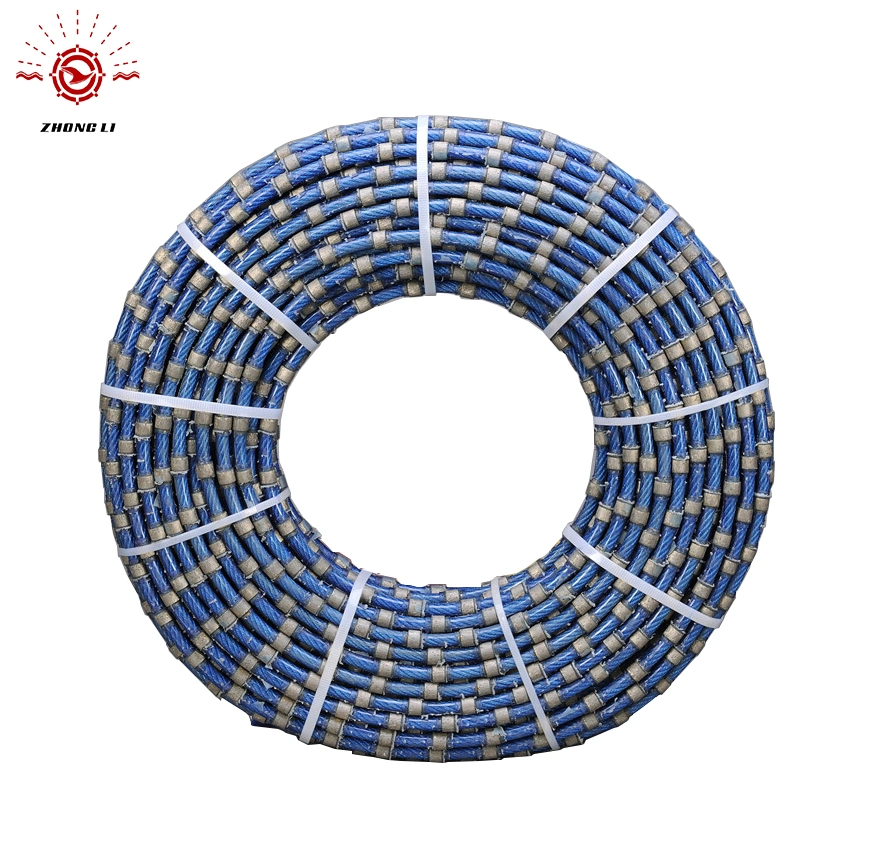

Diamond Wire Saw for Granie Block Dressing with Stationary Machine

1. Description

The diamond wire is not only useful for the rough processing of blocks. It can also be used for the production of complicated profiles in the field of monument design as well as of decorative objects for the construction industry.

As crucial advantages can be mentioned:

· Economical production of demanding objects

· Very high flexibility

· Very high profile accuracy
· Very high quality surface finish

2. Specification

For Block Squaring
Item	Diameter	Coating	Beads number	Cutting material	Line speed	Cutting speed	Life
WGS110 WGS105	Φ11.0mm Φ10.5mm	Rubber Plastic	40/meter 37/meter	Hard granite	25-30 m/s	6-10 m2/h	7-10m2/m
				Middle hard granite	25-30m/s	8-15 m2/h	8-15m2/m
				Soft granite	25-30m/s	12-20m2/h	10-20m2/m
WMS110 WMS105	Φ11.0mm Φ10.5mm	Rubber Plastic	40/meter 37/meter	Hard marble	30-40m/s	10-20m2/h	15-30m2/m
				Middle hard marble	30-40m/s	15-25 m2/h	20-40m2/m
				Soft marble	30-40m/s	20-30 m2/h	30-50m2/m
Other sizes are also available

For Profiling
Item	Diameter	Coating	Beads number	Cutting material	Line speed	Cutting speed	Life
WGP088 WGP084	Φ8.8mm Φ8.4mm	Rubber Plastic	40/meter 37/meter	Hard granite	25-30 m/s	7-10 m2/h	7-10m2/m
				Middle hard granite	25-30m/s	8-15 m2/h	10-15m2/m
				Soft granite	25-30m/s	10-20m2/h	15-20m2/m
WMP088 WMP084	Φ8.8mm Φ8.4mm	Plastic	37/meter 33/meter	Hard marble	30-40m/s	10-20m2/h	20-30m2/m
				Middle hard marble	30-40m/s	15-25 m2/h	25-35m2/m
				Soft marble	30-40m/s	20-30 m2/h	30-40m2/m
Other sizes are also available

Diamond Wire Saw for Granie Block Dressing with Stationary Machine

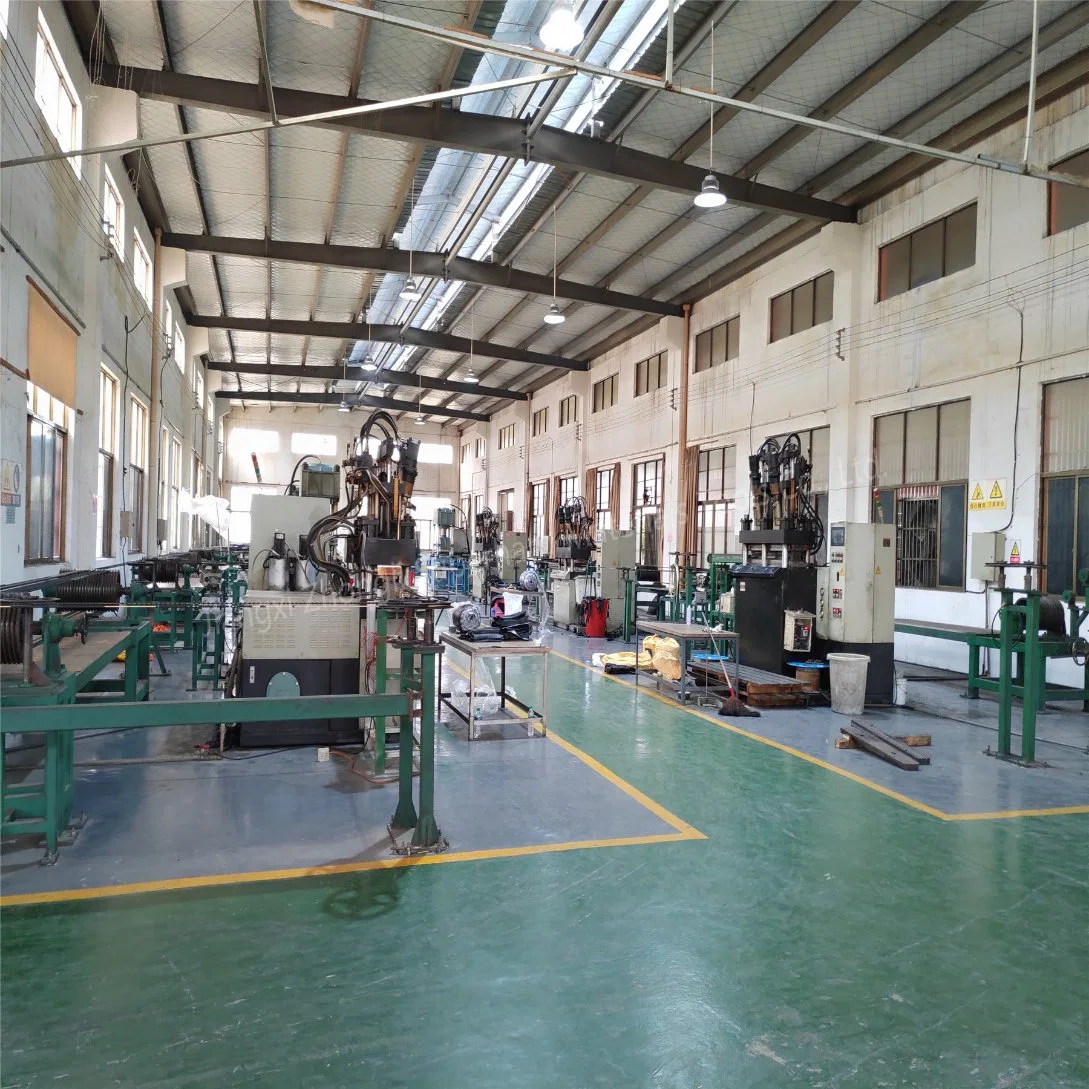

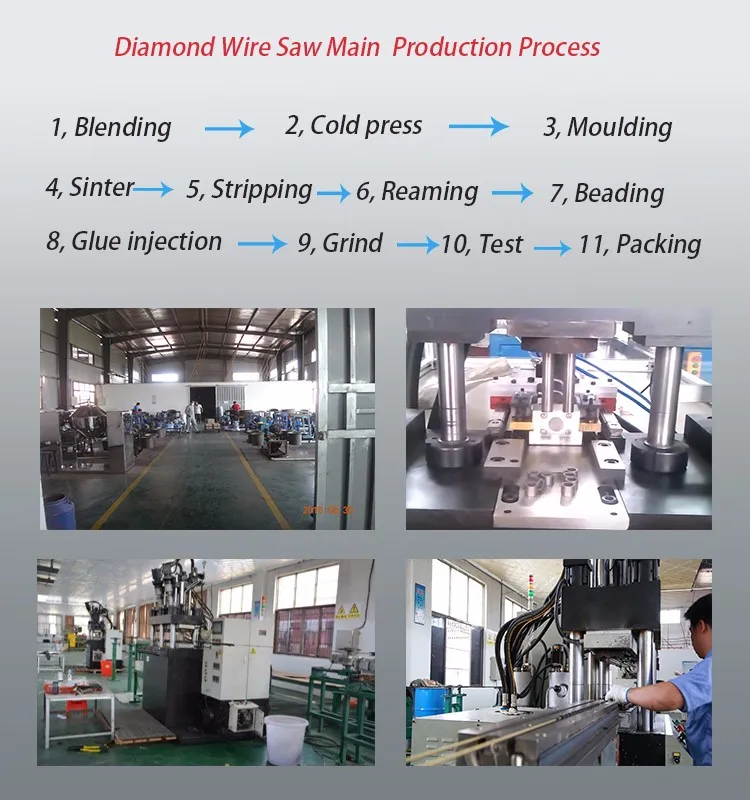

3. Production Process

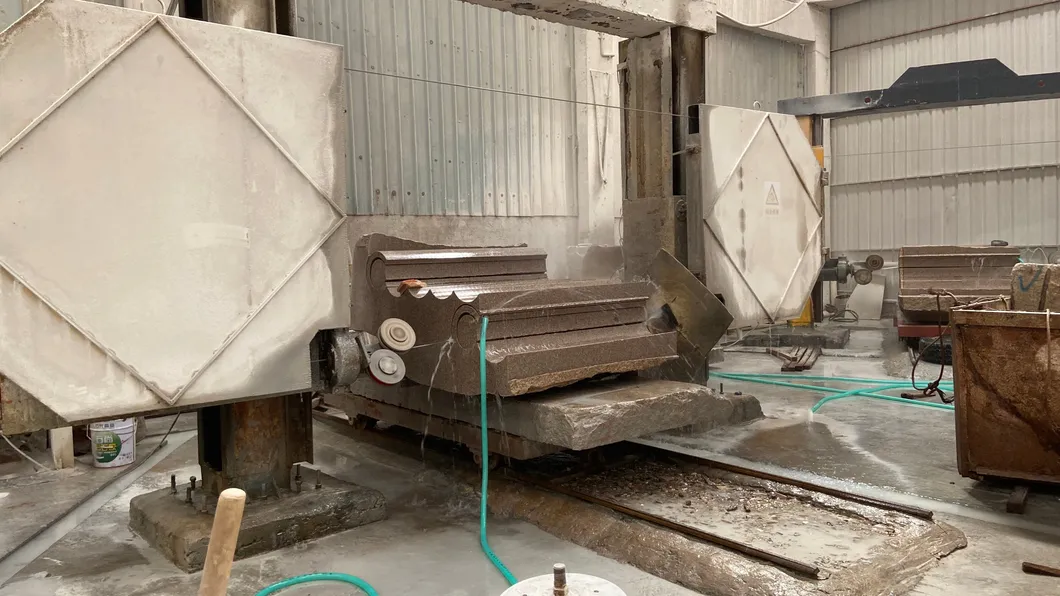

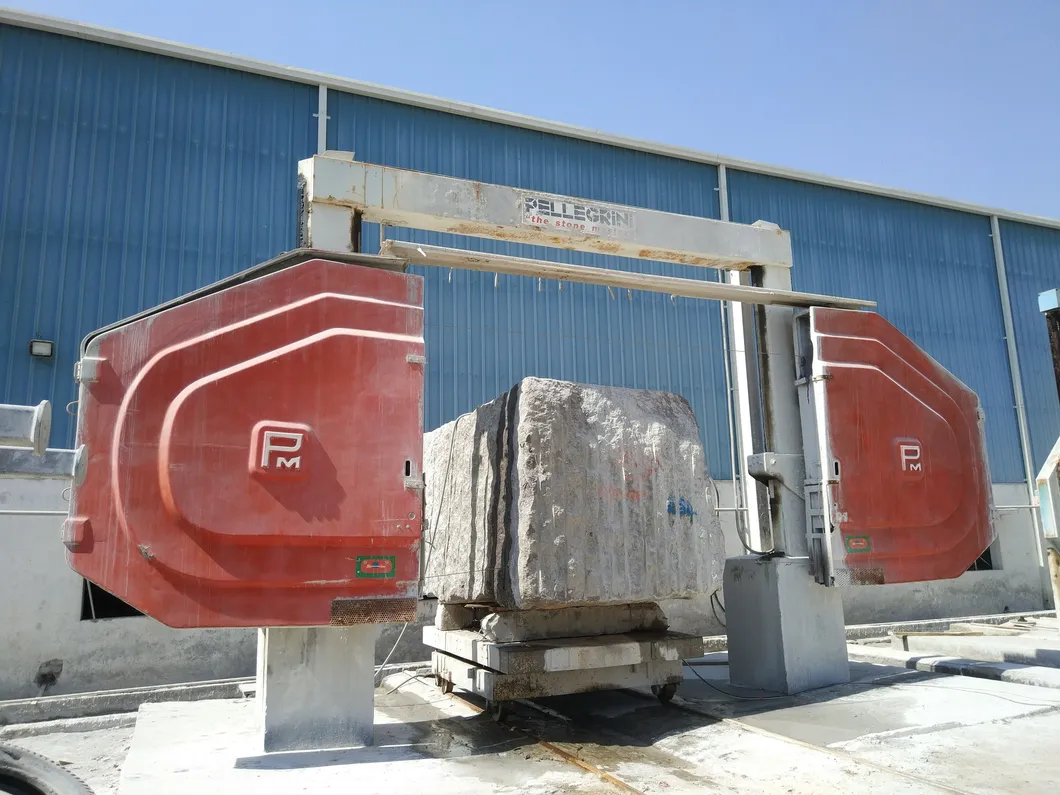

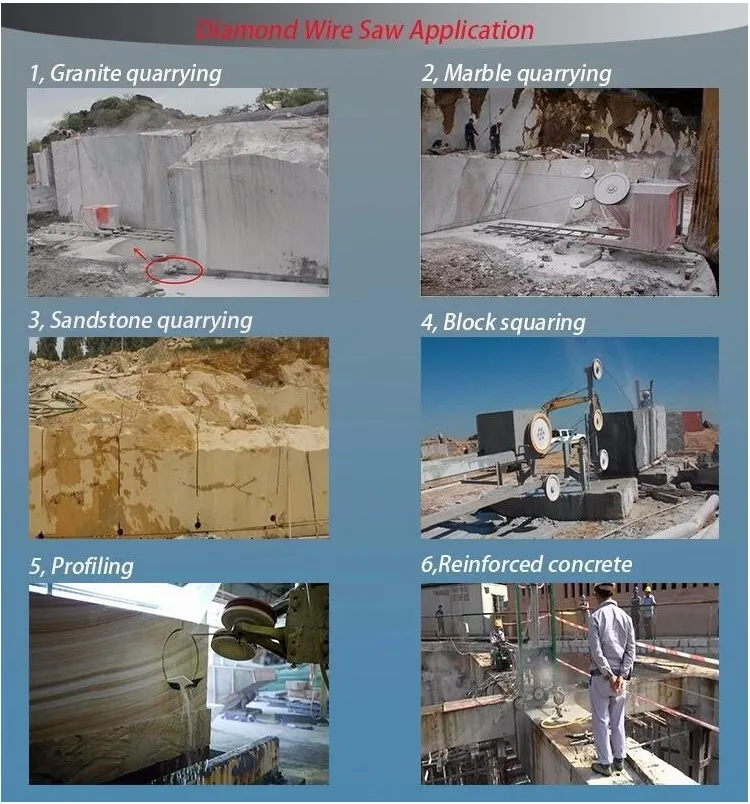

4. Application

5. Packing details

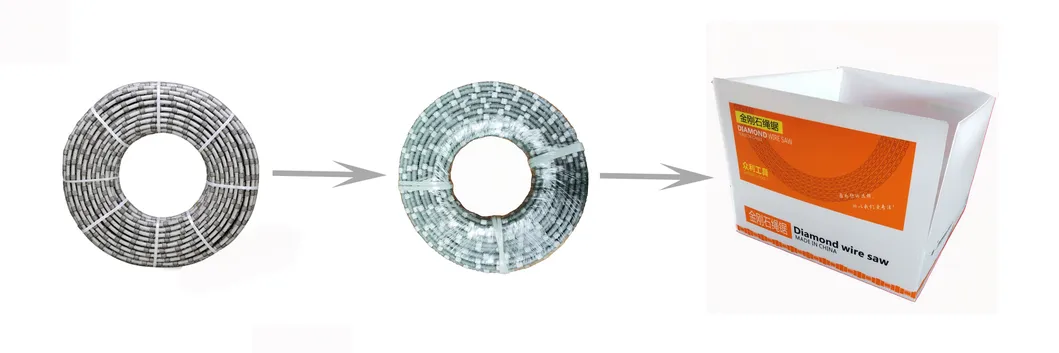

Packing: Wrapped by plastic waterproof film in inner package, then put it into strong carton.

6. Shipping
1. Delivery time
For sample, 3-5 working days once payment confirmed.
For bulk, 7-15 working days once payment confirmed.
2. Shipping Method
For sample order which is less 45kgs, Express will be a better choice. (DHL, UPS, FedEX, TNT, etc.)
For normal order which is 45-100kgs, Air Freight will be a better choice.
For normal order which is above 100kgs, Sea Freight will be a better choice.
