Diamond Wires for Granite Squaring/Cutting/Dressing

Product Description

Diamond Wires for Granite Squaring/Cutting/Dressing

1. Description

Nowadays the diamond wire saws has already been used in many places, such as quarrying, squaring, profiling. There are many more advantages than traditional quarrying as follwing:

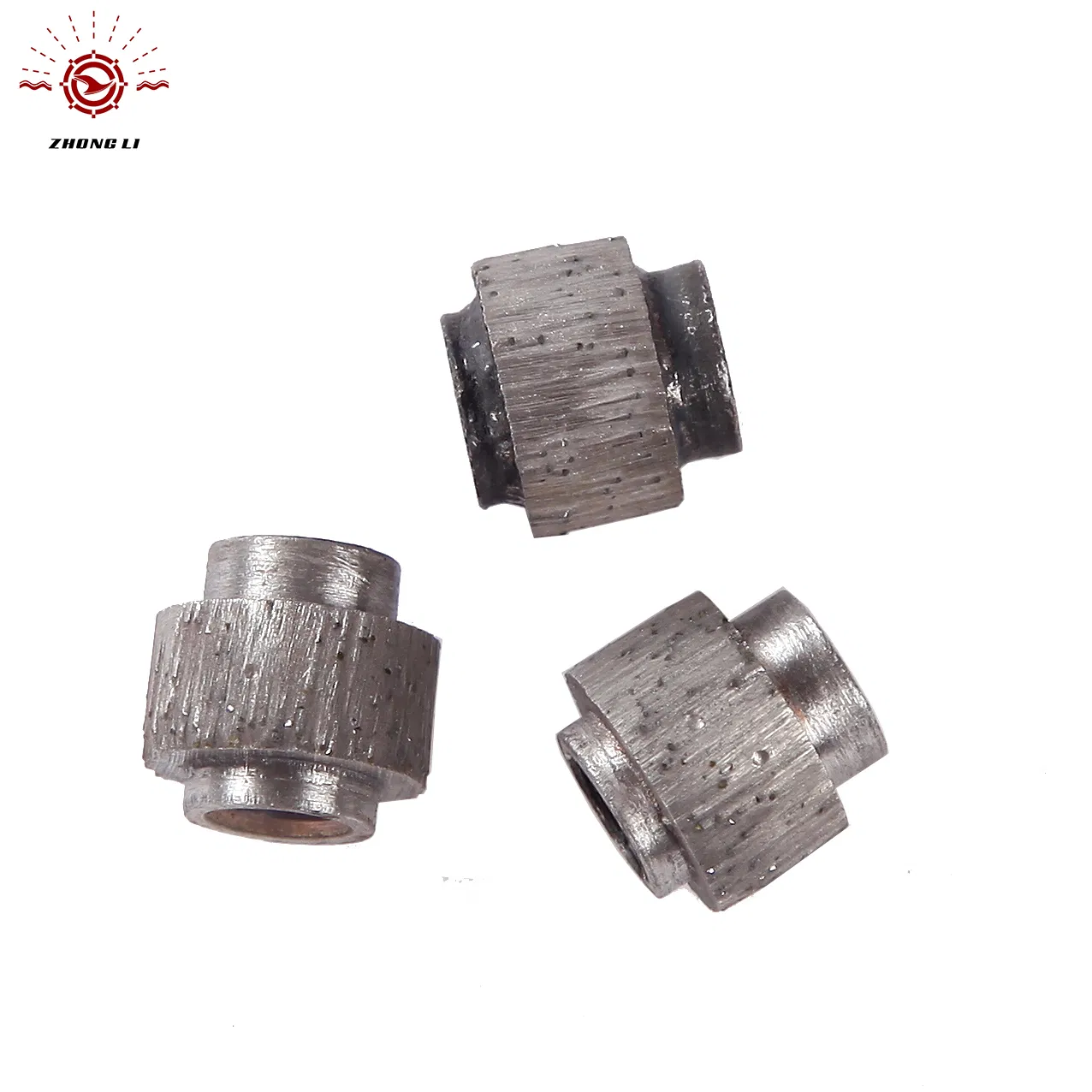

(1) Vulcanized injection-moulding diamond saw wire

(2) Strong bond between rubber, bead and core wire

(3) Vulcanized wires improve the safety

(4) No rotating of beads

(5) Improved wire construction

(6) More robust core wire with high tear strength

(7) Very good wire flexibility and constant wire rotation

(8) Excellent easy cutting characteristics

(9) High productivity

(10) Improved sludge and water transport when cutting

2. Technical data

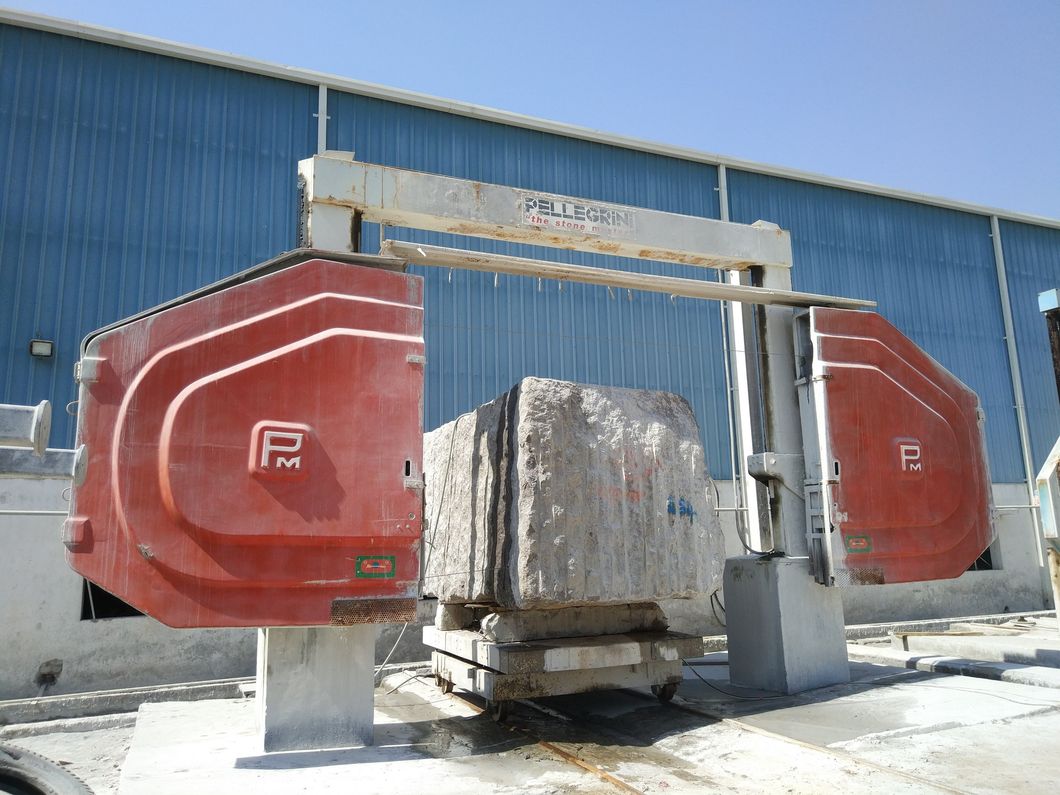

For Block Squaring
Item	Diameter	Coating	Beads number	Cutting material	Line speed	Cutting speed	Life
WGS110 WGS105	Φ11.0mm Φ10.5mm	Rubber Plastic	40/meter 37/meter	Hard granite	25-30 m/s	6-10 m2/h	7-10m2/m
				Middle hard granite	25-30m/s	8-15 m2/h	8-15m2/m
				Soft granite	25-30m/s	12-20m2/h	10-20m2/m
WMS110 WMS105	Φ11.0mm Φ10.5mm	Rubber Plastic	40/meter 37/meter	Hard marble	30-40m/s	10-20m2/h	15-30m2/m
				Middle hard marble	30-40m/s	15-25 m2/h	20-40m2/m
				Soft marble	30-40m/s	20-30 m2/h	30-50m2/m
Other sizes are also available

For Profiling
Item	Diameter	Coating	Beads number	Cutting material	Line speed	Cutting speed	Life
WGP088 WGP084	Φ8.8mm Φ8.4mm	Rubber Plastic	40/meter 37/meter	Hard granite	25-30 m/s	7-10 m2/h	7-10m2/m
				Middle hard granite	25-30m/s	8-15 m2/h	10-15m2/m
				Soft granite	25-30m/s	10-20m2/h	15-20m2/m
WMP088 WMP084	Φ8.8mm Φ8.4mm	Plastic	37/meter 33/meter	Hard marble	30-40m/s	10-20m2/h	20-30m2/m
				Middle hard marble	30-40m/s	15-25 m2/h	25-35m2/m
				Soft marble	30-40m/s	20-30 m2/h	30-40m2/m
Other sizes are also available

Below are the testing data for your reference:

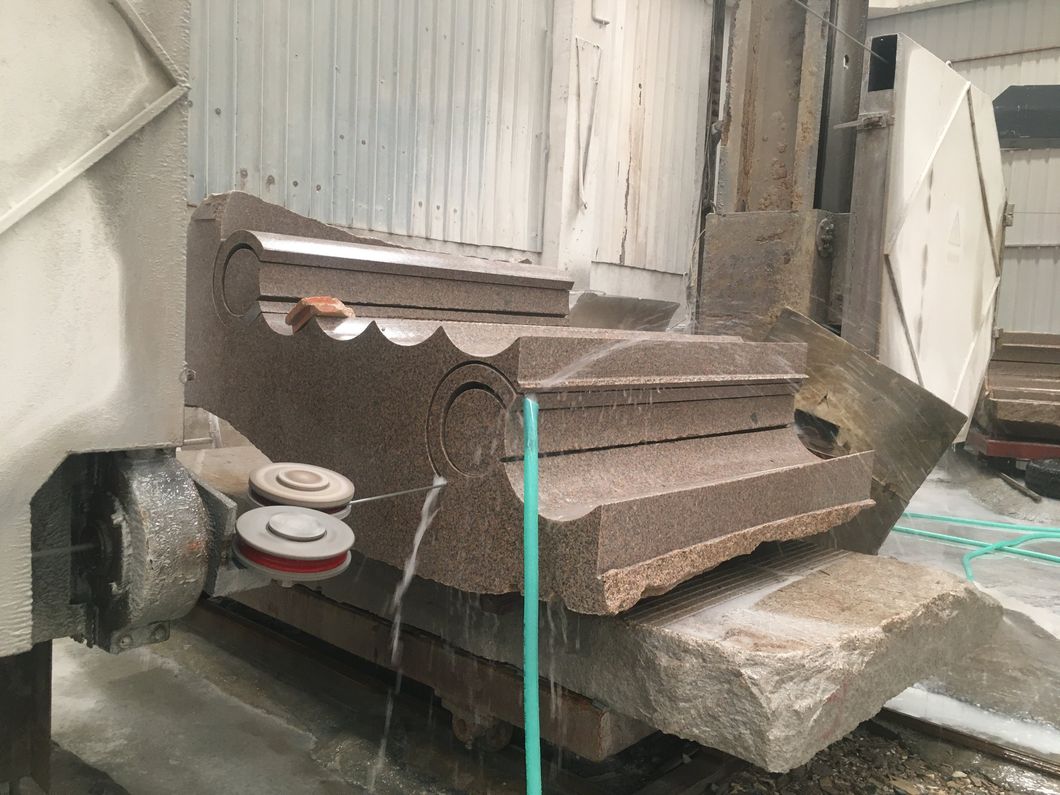

Situation1: For profiling (curve cutting), medium hard granite
Cutting speed: 1-2M2/Hour
Cutting life: 9-12M2/M
Diamond Wires for Granite Squaring/Cutting/Dressing

Situation2: For dressing, soft to medium granite
Cutting speed: 0.8-1.2M2/Hour
Cutting life: 15-20M2/M

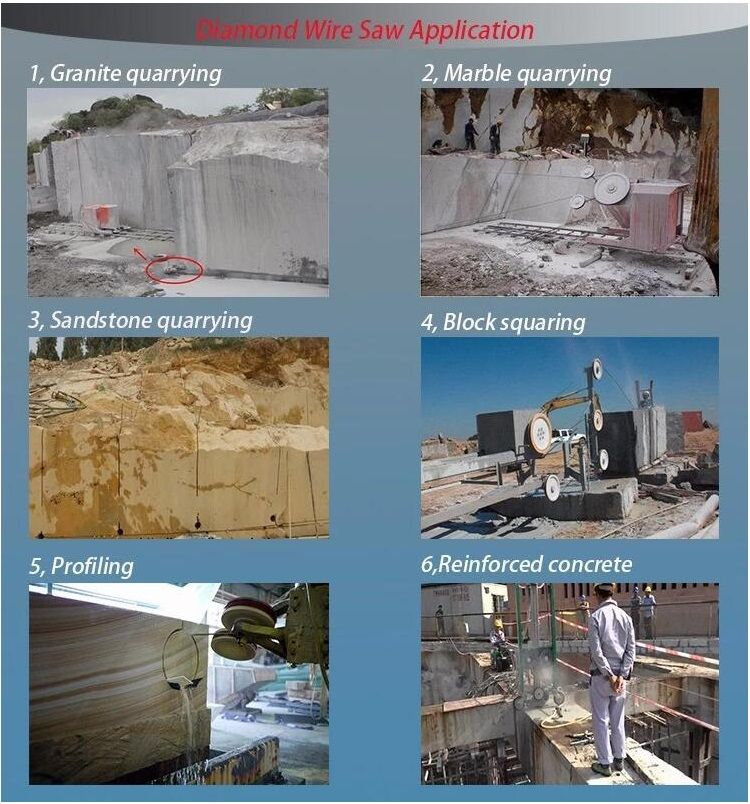

3. Other Application

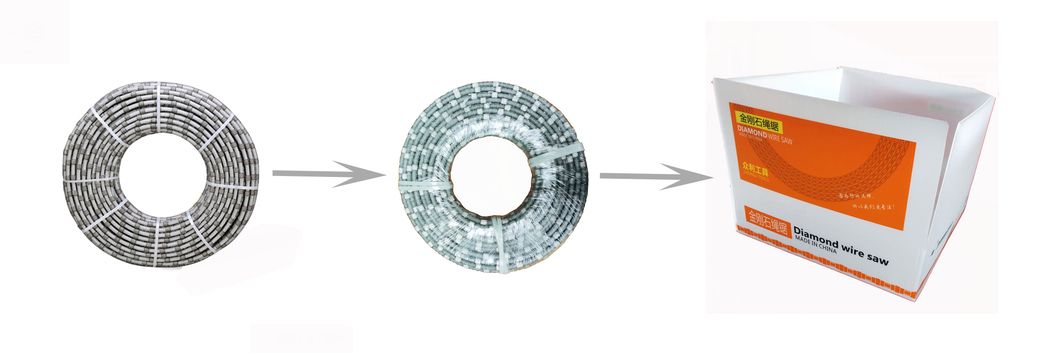

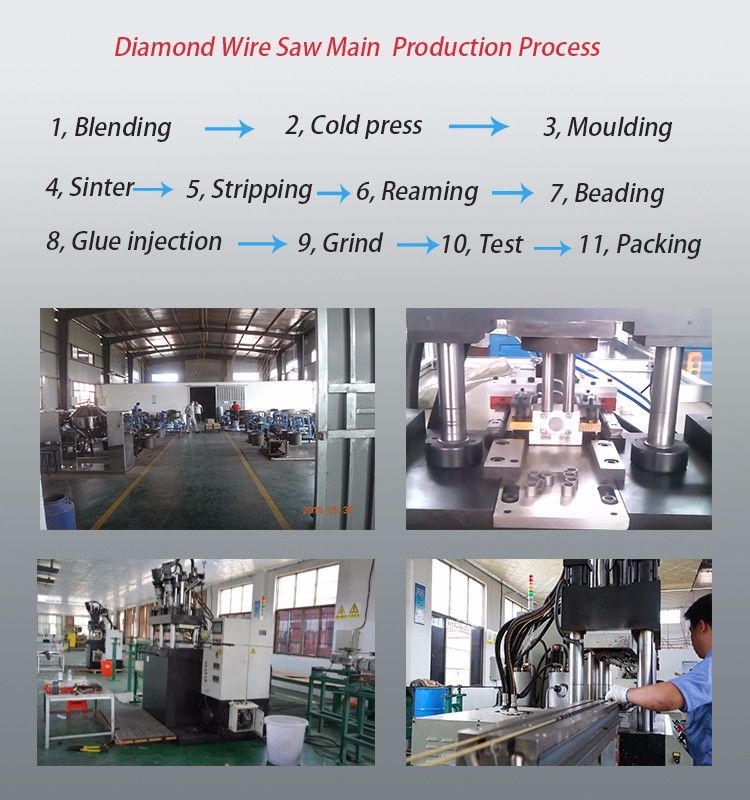

4. Production Process

5. Packing details
Packing: Wrapped by plastic waterproof film in inner package, then put it into strong carton.
Diamond Wires for Granite Squaring/Cutting/Dressing

6. Shipping
1. Delivery time
For sample, 3-5 working days once payment confirmed.
For bulk, 7-15 working days once payment confirmed.
2. Shipping Method
For sample order which is less 45kgs, Express will be a better choice. (DHL, UPS, FedEX, TNT, etc.)
For normal order which is 45-100kgs, Air Freight will be a better choice.
For normal order which is above 100kgs, Sea Freight will be a better choice.

Diamond Wires for Granite Squaring/Cutting/Dressing
