Plastic Diamond Wire Saw Diamond Wire for Granite

Product Description

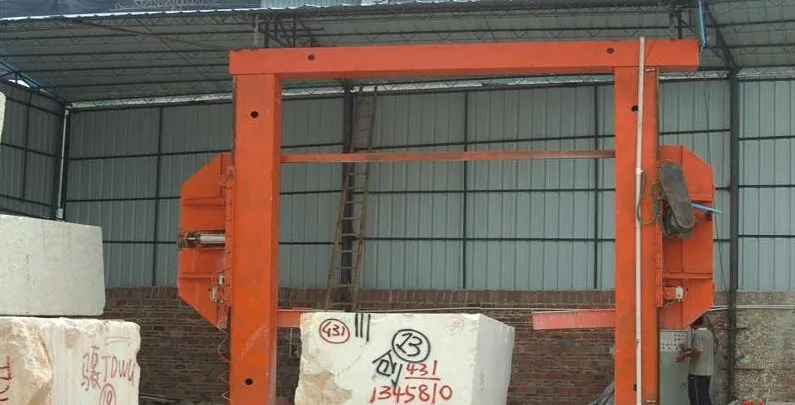

Diamond Wire Saw for Granite Squaring and Cutting

Theses kind Diamond Wire Saw can be used to dissect and get the standard block. They have following specialties:
  · The wire allows significantly greater sawing heights than large discs. It is possible to cut large block by diamond wire;
  · Thinner cutting width, and more precise;
  · By virtue of its reliability, adjust the cutting techniques according to different stone material;
  · Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques;

· Less pollution

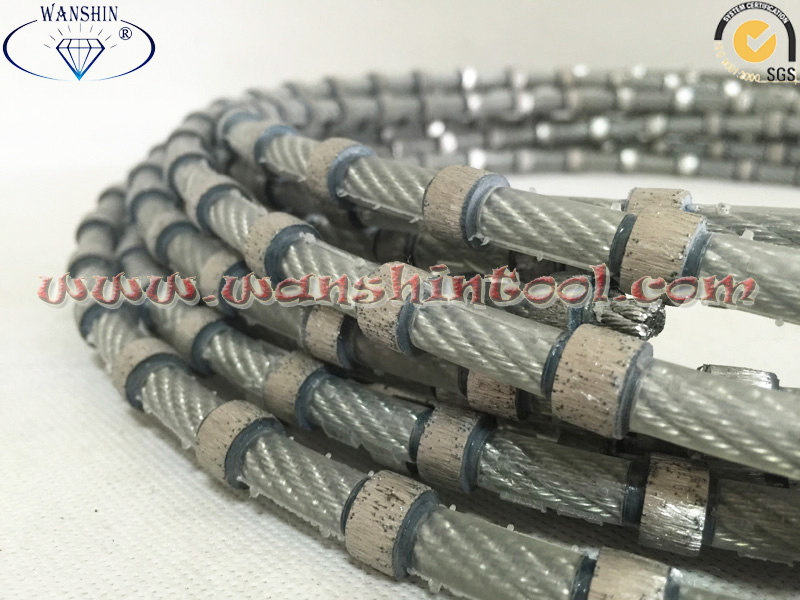

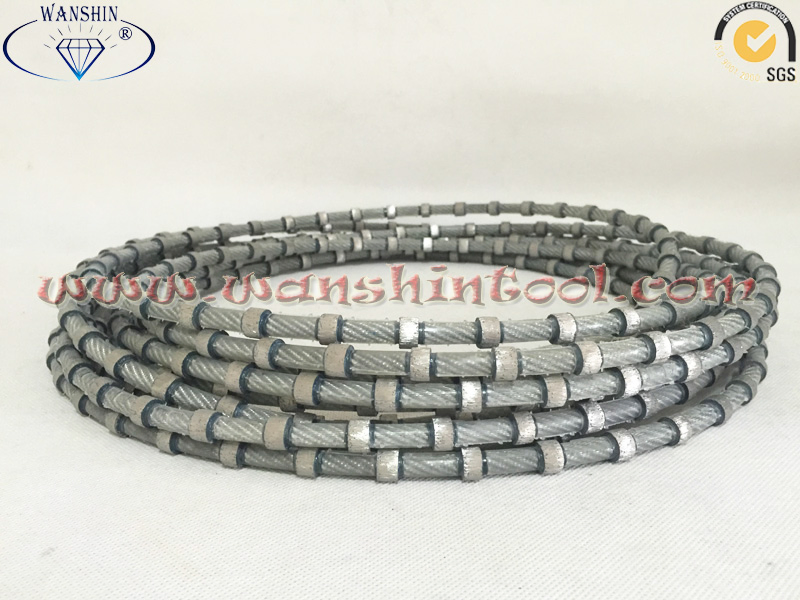

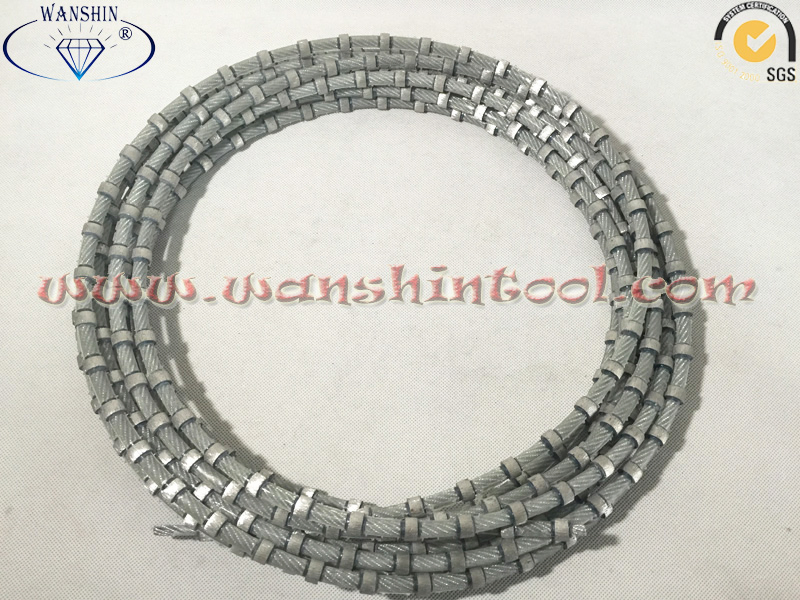

Plastic Diamond Wire Saw Diamond Wire for Granite

Diameter (mm)	Code No.	Fixing Type	Beads No. pcs/M	Material type	Linear speed (m/s)	Sawing speed (mm/min)	Wire life(m2/m)
11.0	WSDW-GS01	Plastic+rubber	37	Class 1-2 Class 3-4 Class 5	26-30 22-26 18-22	4-7 2-4 1-3	14-20 8-14 4-8
10.0	WSDW-GS02	Plastic+rubber	37
9.0	WSDW-GS03	Plastic	37
8.8	WSDW-GS04	Plastic	33/37
8.5	WSDW-GS05	Plastic	33/37
